Description

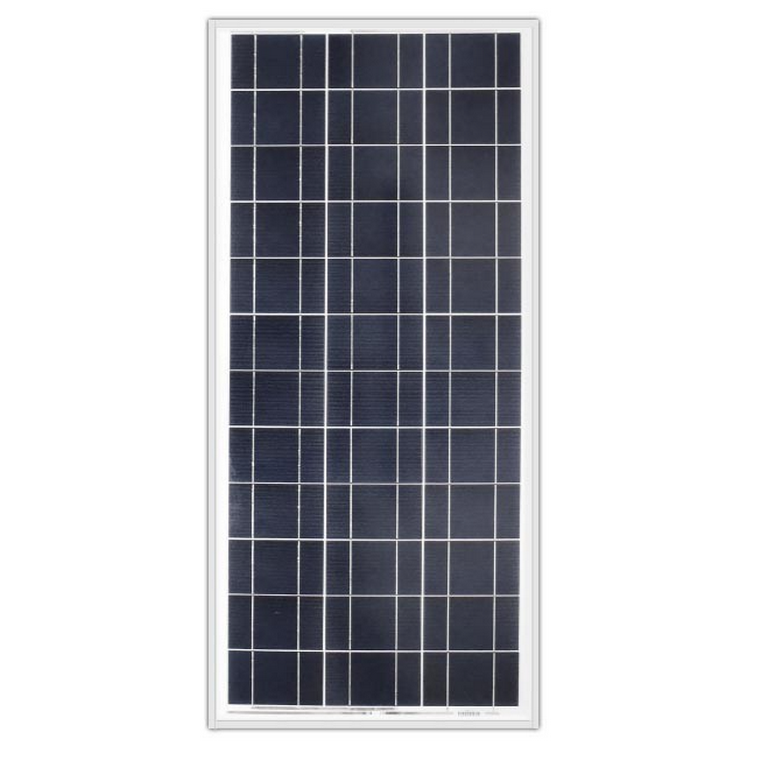

The Ameresco 90J-V Solar Panel 90-Watt 12V is certified for hazardous locations and is the direct result of over four decades of design, manufacturing, and proven field use. Our use of quality materials, rigorous testing, and process control delivers a solar module with optimized life and electrical energy production that our industrial customers depend on. From mountaintops to off-shore platforms, weather stations in the bitter cold of Antarctica to telephone signal repeaters in the hot Australian outback, our modules perform in the harshest environments.
Features
-
Built to last. From mountaintops to offshore platforms, on weather stations in the bitter cold of Antarctica and on telephone signal repeaters in the hot Australian outback, the technology has been proven in the harshest environments.
-
Accessible junction box for off-grid connections, J-type junction box has accessible terminals for easier module interconnections in off-grid applications, and it allows fitting cable glands for various cross-sections.
-
Thick, durable scratch resistant back sheet. The thick back sheet provides extra insulation and increased resistance to protect your module against rough handling. The white polyester material lasts longer and increases energy production.
- Multiple mounting possibilities – multi-mount frame allows even greater flexibility in mounting. Positioned parallel to the edge and back of the module, its dual channels accept either M8 or 5/16” hex-head bolts, allowing the module to be mounted from the side or back.
- Easier bolt management – Bolts may be located anywhere along the channels; the channel groove is specially designed to prevent the bolt from rotating when tightening, allowing installation with just one wrench.
- Long cable for easier battery connections – A 4.6-meter PVC-jacketed AWG 18-2 polarized cable is potted into the fully sealed junction box located on the module back. The module’s electrical connections are sealed for prevention against corrosion and moisture penetration.
-
High reliability. Cell interconnections and diode placement use well-established industry practice and are field proven to provide excellent reliability.
-
Quality and certifications. ISO 9001 factory certification ensures that our manufacturing facilities use proven manufacturing and quality control processes.
Specifications
- Part Number: 90J-V
- Manufacturer: Ameresco Solar
- Voltage: 12v
- Length: 47.60″
- Width: 21.10″
- Thickness: 2.00″
