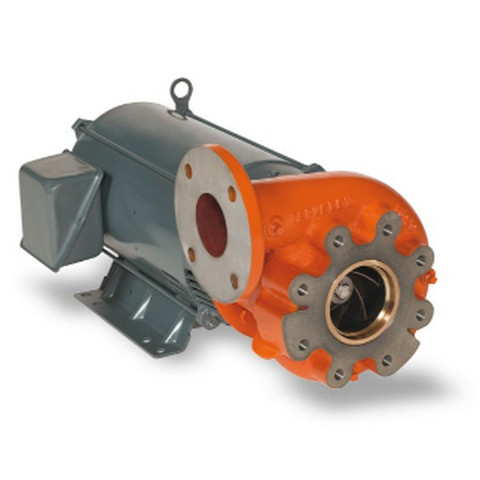

Berkeley Pump B74460 1-Ph 3HP T Series B2TPMS Silicon Bronze Flanged

Description

The Berkeley Pump B74460 1-Ph 3HP T Series B2TPMS Silicon Bronze Flanged is ideal for most applications requiring high performance, easy maintenance and moderate initial cost. This Type “B” close coupled centrifugal includes cast Iron construction with unique back pull-out design that permits access to the impeller without disturbing the piping.

Features

• Four-position Discharge – Rotatable discharge can be positioned for fast, easy piping. Small models equipped with tapped suction and discharge; large models have standard ANSI 125# flat-face flange.
• Premium-grade Motors – NEMA grade motors for greater efficiency, reliability and longevity. Quiet, smooth operation.
• Motor Bracket – Precision-machined, closed-grain cast iron provides added strength to minimize deflection and ensure a tight component seal.
• Maintenance-free Shaft Seal – Self-lubricating, corrosion-resistant mechanical shaft seal provides maximum abrasion resistance without leaking. Optional seals available for special applications.
• Replaceable Slip-on Shaft Sleeve –  Rugged stainless steel shaft sleeve provides maximum corrosion and wear resistance.
• Replaceable Bronze Wear Ring – Available on some models.
• Superior Impeller – Precision-machined to optimize performance and operating efficiencies. Mechanically balanced to reduce bearing load for longer service life. Keyed and locked to motor shaft.
• Heavy-duty Volute Case –  Thick-wall, close-grained cast iron stands tough in high-demand environment. Hydraulic efficiency is improved with CAD based geometric design. Back pull-out design permits easy removal and repair without disturbing piping.
• Multiple Taps –  Taps included for easy priming and draining.
• Durable Finish – High-quality lead-free/chromate free primer and paint coatings.

Specifications

• Model # – B74460
• Series – B2TPMS
• HP – 3
• Nominal Impeller Diameter – 6″
• RPM – 3600
• Shaft Seal – Packing
• Impeller Material – SILICON BRONZE
• Volute Connection – FLANGED
• Suction – 2″
• Discharge – 1-1/2″
• Weight – 105 lbs

PDF’s

• OWNER’S MANUAL – BERKELEY Close Coupled Motor Driven Centrifugal Pump
• DATA SHEET – BERKELEY TYPE B CLOSE COUPLED MOTOR DRIVEN CENTRIFUGAL PUMPS
• BULLETIN – BERKELEY TYPE B
• DIMENSIONS – BERKELEY B SERIES CENTRIFUGAL PUMP
