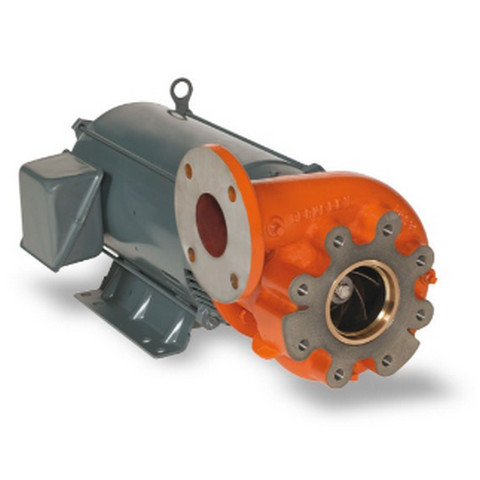

Berkeley Pump B74551 3-Ph 3HP T Series B2-1/2TPMS Silicon Bronze Flanged

Description

The Berkeley Pump B74551 3-Ph 3HP T Series B2-1/2TPMS Silicon Bronze Flanged with a 6″ Impeller is ideal for most applications requiring high performance, easy maintenance and moderate initial cost. This Type “B” close coupled centrifugal includes cast Iron construction with unique back pull-out design that permits access to the impeller without disturbing the piping.

Features

• Four-position Discharge – Rotatable discharge can be positioned for fast, easy piping. Small models equipped with tapped suction and discharge; large models have standard ANSI 125# flat-face flange.
• Premium-grade Motors – NEMA grade motors for greater efficiency, reliability and longevity. Quiet, smooth operation.
• Motor Bracket – Precision-machined, closed-grain cast iron provides added strength to minimize deflection and ensure a tight component seal.
• Maintenance-free Shaft Seal – Self-lubricating, corrosion-resistant mechanical shaft seal provides maximum abrasion resistance without leaking. Optional seals available for special applications.
• Replaceable Slip-on Shaft Sleeve –  Rugged stainless steel shaft sleeve provides maximum corrosion and wear resistance.
• Replaceable Bronze Wear Ring – Available on some models.
• Superior Impeller – Precision-machined to optimize performance and operating efficiencies. Mechanically balanced to reduce bearing load for longer service life. Keyed and locked to motor shaft.
• Heavy-duty Volute Case –  Thick-wall, close-grained cast iron stands tough in high-demand environment. Hydraulic efficiency is improved with CAD based geometric design. Back pull-out design permits easy removal and repair without disturbing piping.
• Multiple Taps –  Taps included for easy priming and draining.
• Durable Finish – High-quality lead-free/chromate free primer and paint coatings.

Specifications

• Model # – B74551
• Series – B2-1/2TPMS
• HP – 3
• Nominal Impeller Diameter – 6″
• RPM – 3600
• Shaft Seal – Mechanical
• Impeller Material – SILICON BRONZE
• Volute Connection – FLANGED
• Suction – 2″
• Discharge – 2-1/2″
• Weight – 105 lbs

PDF’s

• OWNER’S MANUAL – BERKELEY Close Coupled Motor Driven Centrifugal Pump
• DATA SHEET – BERKELEY TYPE B CLOSE COUPLED MOTOR DRIVEN CENTRIFUGAL PUMPS
• BULLETIN – BERKELEY TYPE B
• DIMENSIONS – BERKELEY B SERIES CENTRIFUGAL PUMP
