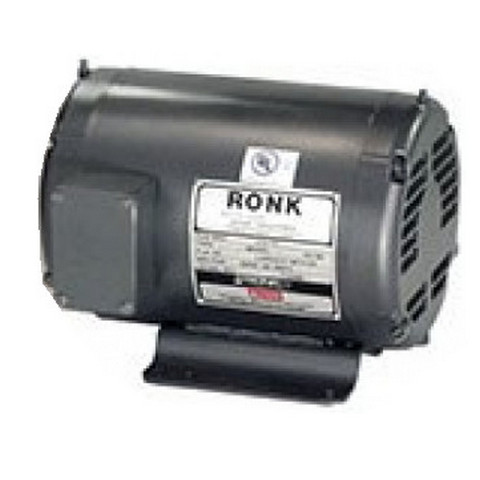

RONK RCRO015 (For 15 KVA 2P Rotary)

Description

The RONK RCRO015 15 KVA 2P ROTO-CON Type P rotary converter provides smooth, reliable 3-phase power from single-phase lines. Best suited for operating motors that do not operate continuously at high load levels and for non-motor loads. Replacement component for the rotary component of the RONK 15 KVA 2P Roto-Con Type P.

For the majority of applications, ROTO-CON® is sized to the largest 3Ø motor (based on FLA rating) or total motor HP to be operated at one time. For some applications, however, it is recommended that ROTO-CON be oversized to operate correctly. Type P comes in 240V input/output (Type 2P) and 480V input/output (Type 4P).

Specifications

• Part: RCRO015
• Converter Size: 15 KVA
• Enclosure: 601
• Largest 3Ø Motor – Easy Start: 7.5 HP
• Largest 3Ø Motor – Hard Start: 5 HP
• Total 3Ø Motors: 15 HP
• Weight: 125 LBS

RONK WARRANTY PDF
