Description

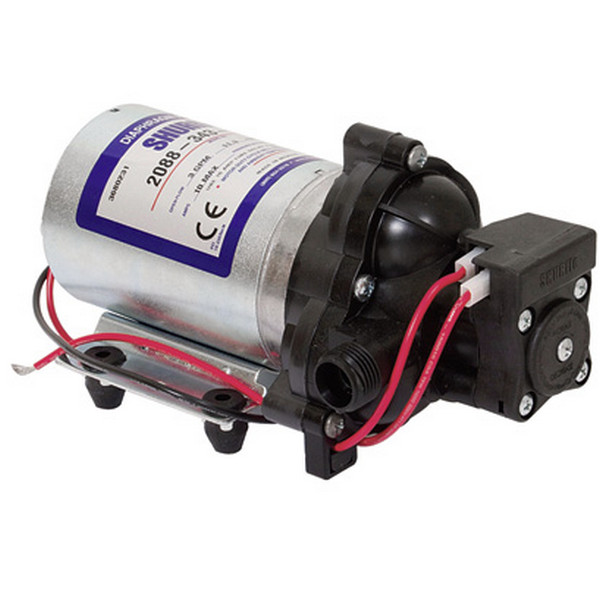

The Shurflo Pump 2088-343-435 features a 12vDC system, a 45 PSI Switch, and a 3 GPM capacity with a sealed motor. It also includes a 45 psi demand switch, a Polypropylene housing, Viton® valves, and a Santoprene® diaphragm, along with 1/2” MSPT ports. Suitable for cabin use, watering projects, and small home systems, the Shurflo 2088 Series diaphragm pumps ensure reliable performance in applications requiring high flow and moderate pressure. With the capability to handle flows of up to 4.0 GPM (14.4 l/min), these pumps can be easily mounted in any position and are designed for straightforward maintenance.
Features
- Self-Priming up to 12 Vertical Feet [3.7M]
- Chemically Resistant Materials
- Automatic Demand
- Built-In Check Valve (May Vary by Model) to Prevent Back Flow of Fluid
- Supported for agriculture
Specifications
- MODEL NUMBER: Shurflo Pump 2088-343-435
- PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
- CHECK VALVE:(1-Way Operation) Prevents Reverse Flow
- CAM: 3.0 Degree
- MOTOR: Permanent Magnet, P/N 11-111-00
- VOLTAGE: 12 VDC Nominal
- PRESSURE SWITCH: Adjustable Shut-Off (Range 30-50 PSI)
- Factory Set @ 45 PSI, Turn On 25 PSI 5 PSI
- LIQUID TEMPERATURE: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.
- PRIME: Self-Priming Up To 8.0 Ft. Vertical,
- Max. Inlet Pressure 30 PSI (2.1 Bar)
- PORTS: 1/2″ – 14 Male Parallel Thread
- MATERIAL OF CONSTRUCTION:
Material of Construction
- PLASTICS-Polypropylene
- VALVES-Viton
- DIAPHRAGM-Santoprene
- FASTENERS-Zinc Plated Steel
- NET WEIGHT: 4.8 Lbs. (2.18 Kg)
- DUTY CYCLE: Intermittent (See Temperature Rise Chart)
- TYPICAL APPLICATIONS: Agricultural Spraying
Documents PDF’s
- Specification 2088-343-435
- Parts Breakdown
