Description

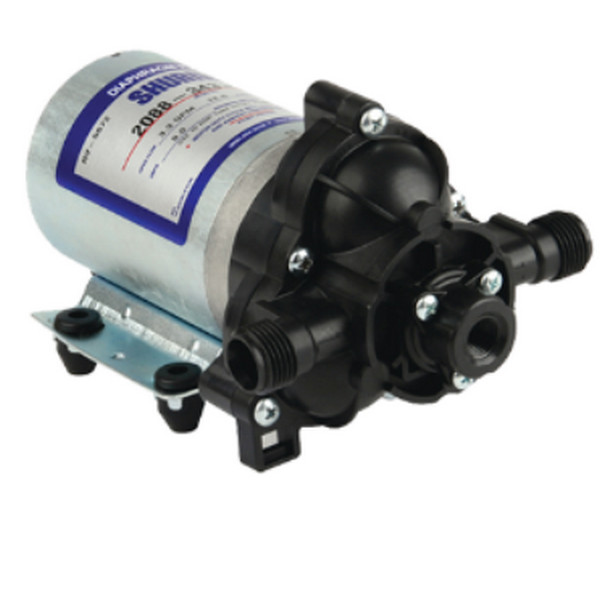

The Shurflo Pump 2088-343-500 features a 12vDC 60 PSI Switch with a 3.3 GPM flow rate, a sealed motor, a 60-psi demand switch, a Polypropylene housing, Viton® valves, Santoprene® diaphragm, and 1/2” MSPT ports. It is suitable for cabin, watering projects, or small home systems. The Shurflo 2088 Series diaphragm pumps offer reliable performance in applications requiring high flow and moderate pressure. They find use in various spraying and transfer tasks that demand flows of up to 4.0 GPM [14.4 l/min]. These pumps are versatile, mountable in any position, and designed for simple maintenance.
Features
- Self-Priming up to 12 Vertical Feet [3.7M]
- Chemically Resistant Materials
- Automatic Demand
- Built-In Check Valve (May Vary by Model) to Prevent Back Flow of Fluid
- Supported for agriculture
Specifications
- MODEL NUMBER: Shurflo Pump 2088-343-500
- PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
- CHECK VALVE: None
- CAM: 3.0 Degree
- MOTOR: Permanent Magnet, P/N 11-111-00
- VOLTAGE: 12 VDC Nominal
- PRESSURE SWITCH: None
- LIQUID TEMPERATURE: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.
- PRIME: Self-Priming Up To 9 Ft. Vertical,
- Max. Inlet Pressure 30 PSI (2.1 Bar)
- PORTS: 1/2″ – 14 Male Parallel Thread
Material of Construction
- MATERIAL OF CONSTRUCTION:
- PLASTICS- Polypropylene
- VALVES- Viton
- DIAPHRAGM- Santoprene
- FASTENERS- Zinc Plated Steel
- NET WEIGHT: 4.7 Lbs (2.13 Kg)
- DUTY CYCLE: Intermittent (See Temperature Rise Chart)
- TYPICAL APPLICATIONS: Water Delivery
