Description

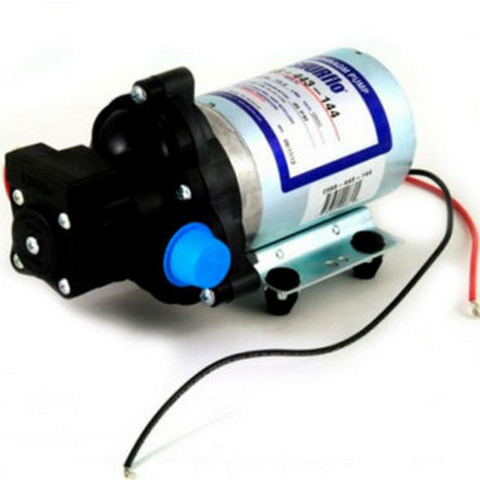

The Shurflo Pump 2088-443-144 features a 12vDC power supply, 45PSI Demand Switch, 3.3G Splash-proof rate, Polypropylene housing, Viton® valves, Santoprene® diaphragm, and 1/2” MSPT ports. Suitable for cabin, watering projects, or small home systems, the Shurflo 2088 Series diaphragm pumps guarantee reliable performance in high flow, moderate pressure scenarios. Utilized in various spraying and transfer operations requiring flows of up to 4.0 GPM [14.4 l/min], these pumps can be mounted in any orientation and are crafted for easy upkeep.
Features
- Self-Priming up to 12 Vertical Feet [3.7M]
- Chemically Resistant Materials
- Automatic Demand
- Built-In Check Valve (May Vary by Model) to Prevent Back Flow of Fluid
- Supported for agriculture
Specifications
- PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
- CHECK VALVE:(1-Way Operation) Prevents Reverse Flow
- CAM: 3.5 Degree
- MOTOR: Permanent Magnet, P/N 11-111-00
- VOLTAGE: 12 VDC Nominal
- PRESSURE SWITCH: Adjustable Shut-Off (Range 30-50 PSI)
- Factory Set @ 45 PSI, Turn On 25 PSI 5 PSI
- LIQUID TEMPERATURE: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.
- PRIME: Self-Priming Up To 8.0 Ft. Vertical,
- Max. Inlet Pressure 30 PSI (2.1 Bar)
- PORTS: 1/2″ – 14 Male Parallel Thread
- MODEL NUMBER: Shurflo Pump 2088-443-144
Material of Construction
- PLASTICS-Polypropylene
- VALVES-Viton
- DIAPHRAGM-Santoprene
- FASTENERS-Zinc Plated Steel
- NET WEIGHT: 4.8 Lbs. (2.18 Kg)
- DUTY CYCLE: Intermittent (See Temperature Rise Chart)
- TYPICAL APPLICATIONS: Agricultural Spraying
