Description

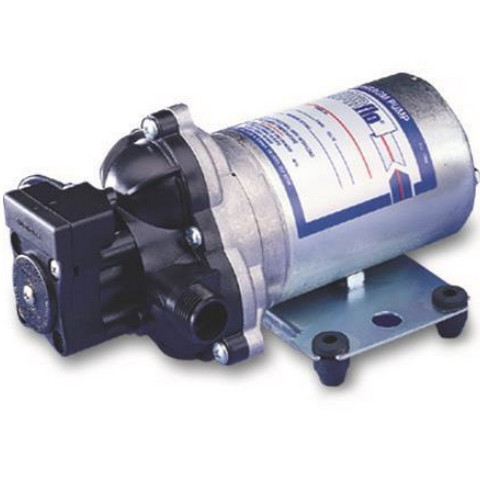

The Shurflo Pump 2088-594-500 provides 115 VAC, 3.3 GPM Open Flow, featuring Santoprene Valves and Diaphragm, housed in Polypropylene with 1/2-14 NPSM Ports. Suitable for cabin, irrigation, or small household setups, this pump from the Shurflo 2088 Series ensures dependable performance in applications with high flow and moderate pressure. It offers Self-Priming capabilities up to 12 Vertical Feet [3.7M], Automatic demand, chemically resistant materials, and is designed for Agricultural use. These diaphragm pumps are commonly utilized in various spraying and transfer tasks requiring flows of up to 4.0 GPM [14.4 l/min]. They offer flexibility in mounting positions and are engineered for straightforward maintenance. Agricultural Spraying.
Features
- Self-Priming up to 12 Vertical Feet [3.7M]
- Chemically Resistant Materials
- Automatic Demand
- Built-In Check Valve (May Vary by Model) to Prevent Back Flow of Fluid
- Supported for agriculture
Specifications
- Voltage: 115v AC
- Control Pressure: N/A
- Control Type: N/A
- Open Flow GPM: 3.3 GPM
- Amps: 0.9
- Ports: 1/2″-14 NPSM
- Housing Material: Polypropylene
- Valve Material: Santoprene
- Diaphragm Material: Santoprene
- Cam: 3
- Diaphragm Type: Solid
- Motor Finish: Zinc
- Motor Wiring: 6 ft Cord
- Wire Length: 72
- Model: Shurflo Pump 2088-594-500
Material of Construction
- PLASTICS-Polypropylene
- VALVES-Santoprene
- DIAPHRAGM-Santoprene
- FASTENERS-Zinc
- NET WEIGHT: 4.8 Lbs. (2.18 Kg)
- DUTY CYCLE: Intermittent (See Temperature Rise Chart)
- TYPICAL APPLICATIONS: Agricultural Spraying
Documents PDF’s
- Specification 2088-594-500
- 2088 Specification PDF
- Parts Breakdown
