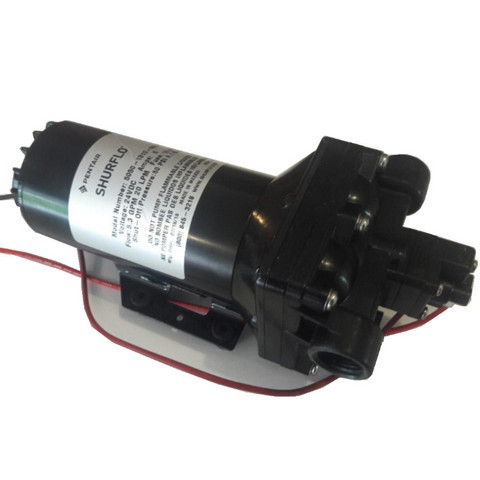

Shurflo Pump 5050-1310-H011 24vDC 60 PSI Switch 5.3 GPM

Description

The Shurflo Pump 5050-1310-H011 provides 24vDC power, a 60 PSI switch, an open flow rate of 5.3 GPM, Viton valves, a Santoprene diaphragm, a Polypropylene housing, and 1/2 NPSM ports. Engineered for high flow applications, the design of the Shurflo 5000 series pump incorporates a durable one-piece co-molded diaphragm for extended longevity and optimal performance in various systems. It is equipped with a multi-fixture adjustable bypass suitable for freshwater setups and can serve other purposes like pressurized water systems in cabins and water transfer tasks. This Bypass pump boasts a robust, thermally protected, CE compliant sealed motor, adjustable bypass feature, self-priming 4-chamber construction, a specially designed co-molded diaphragm, and the ability to run dry without causing damage. In summary, the 5000 series pump is engineered to deliver robust and seamless flow.

Features

• Heavy Duty Sealed Motor Optional
• Available Bypass
• Runs Dry without Damage
• Self-Priming
• CE Compliant, NSF Available
• Co-Molded Diaphragm
• Compact 4-Chamber Design
• Flow Rates up to 5.3 GPM
• Chemical-Resistant Elastomers

Specifications

• Voltage: 24 vDC
• Open Flow GPM: 5.3
• AMPS(Max): 8
• Control Pressure: 60 PSI
• Control Type: Switch
• Port Sizes: 1/2″ NPSM
• Housing Material: Polypropylene
• Valve Material: Viton
• Diaphragm Material: Santoprene
• Motor Wiring: 14 AWG Wire
• Wire Length: 12
• Model: Shurflo Pump 5050-1310-H011

Material of Construction

• PLASTICS-Polypropylene
• VALVES-EPDM
• DIAPHRAGM-Santoprene
• NET WEIGHT: 9 Lbs.
• TYPICAL APPLICATIONS: Water Transfer

Documents PDF’s

• Specification 5050-1310-H011
• 5000 Series Manual
