Description

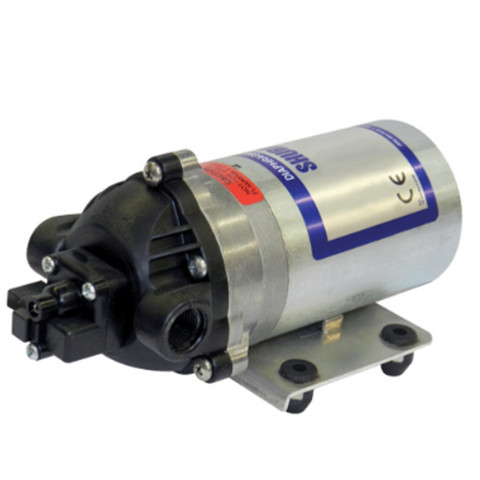

The Shurflo Pump 8000-443-236 Standard Demand Pump features a 12vDC open flow, EPDM valves, Santoprene diaphragm, 60 PSI Demand Switch, 3/8 NPT-Female ports, and Poly Housing. Widely utilized in industrial and agricultural settings, the 8000 Series diaphragm pump by Shurflo is known for its consistent performance and ease of maintenance. Equipped with spherically shaped valves and an automatic demand switch, these pumps provide reliable operation and priming capabilities, delivering up to 1.8 GPM [6.8 l/min]. Available in various chemically resistant materials and voltages ranging from 12 VDC to 230 VAC, they offer versatility and durability. Mountable in any position, these pumps are designed to meet the needs of diverse applications.
Features
- Pressures up to 150 PSI [10.3 BAR]
- Self-Priming up to 8 Vertical Feet [2.4M]
- Chemically Resistant Materials
- Designed for Spraying and Fluid Transfer
- Can Run Dry without Damage
- Built-In Check Valve
- Supported for agriculture
Specifications
- Voltage: 12v DC
- Control Pressure: 60 PSI
- Control Type: Switch
- Open Flow GPM: 1.8 GPM
- Amps: 8
- Ports: 3/8″ NPT
- Housing Material: Polypropylene
- Valve Material: EPDM
- Diaphragm Material: Santoprene
- Cam: 3
- Diaphragm Type: Solid
- Motor Finish: Zinc
- Motor Wiring: 16 AWG wires w/SW
- Wire Length: 12.5
- Model: Shurflo Pump 8000-443-236
Applications
- CHEMICAL TRANSFER & METERING
- COLD THERAPY CIRCULATION
- CONSTRUCTION AND EQUIPMENT
- CHEMICAL AND FLUID DISPENSING
- WATER TREATMENT AND DELIVERY
- HOT OIL EQUIPMENT
