Description

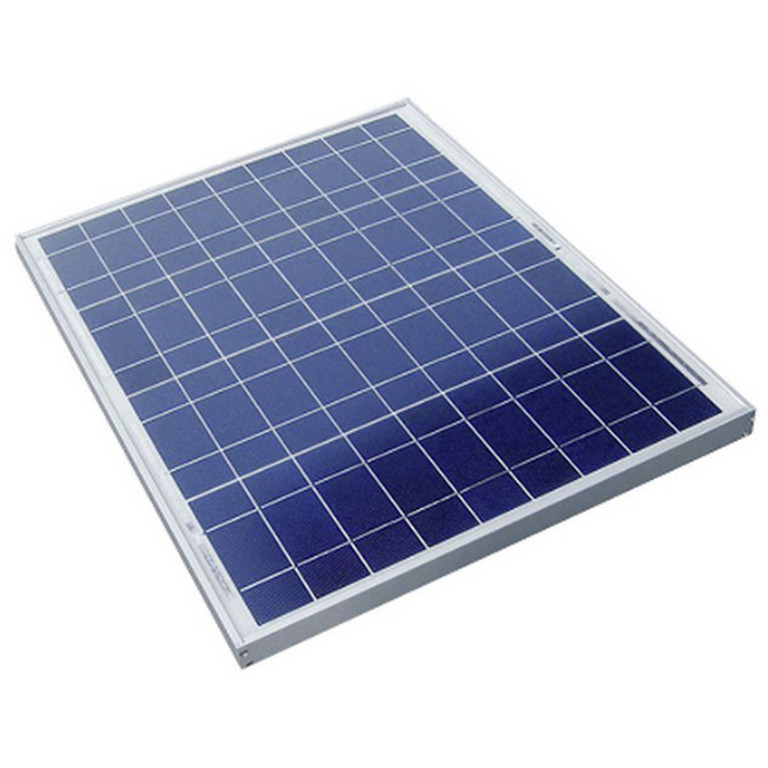

The SolarTech Power SPM040M-BP Solar Panel 40 Watt 12v possesses industrial grade standards utilized by various industry professionals. The Solartech Power photovoltaic J-Series modules are constructed with high efficiency monocrystalline solar cells and produce higher output per module than others in its class. This industrial grade module is an industry standard among various industry professions.
SolarTech Power SPM040M-BP Features:
- Rigid anodized aluminum frame and low iron tempered glass
- Easily accessible grounding points on all four corners for fast installation
- Accessible junction box with 4-1/2 knockout for ease of installation
- (EVA) with TPT cushions the solar cells within the laminate and ensures the operating characteristics of the solar cells under various climatic conditions
- Proven junction box technology
- Tight power tolerance
- Proven superior field performance
SolarTech Power SPM040M-BP Applications:
- Traffic and Safety
- Federal Government
- Oil & Gas
- Security
- Telecommunications
- Water and Wastewater
- Weather and Environmental Monitoring
- Telemetry
- RV Camper
- Emergency Power
- SCADA, RTU, GPS
- Marine
- Area Lighting & Sign
Certifications
- UL 1703 Certification
- ETL Class I, Division 2, (C1D2) Groups ABC & D Certification
Mechanical Characteristics
- Solar: Monocrystalline Silicon
- Cells: 36 cells (156mm x 48mm) in a 3×12 matrix, connected in series
- Front Cover: High transmission 3.2mm (1/8″) glass
- Encapsulant: EVA (double layers)
- Back Cover: White polyester
- Frame: Anodized aluminum
- Junction Box: IP65, UL94-5VA material
- Diodes: Schottky by-pass diodes
- Terminal: Accepts 8-14 AWG wire
- Dimensions: 25.6″ x 21.2″ x 1.97″
- Weight: 10.78 LB
- Operating Temperature: -40°C ~ 90°C / -40°F ~ 194°F
- Storage Humidity: <90%
