Description

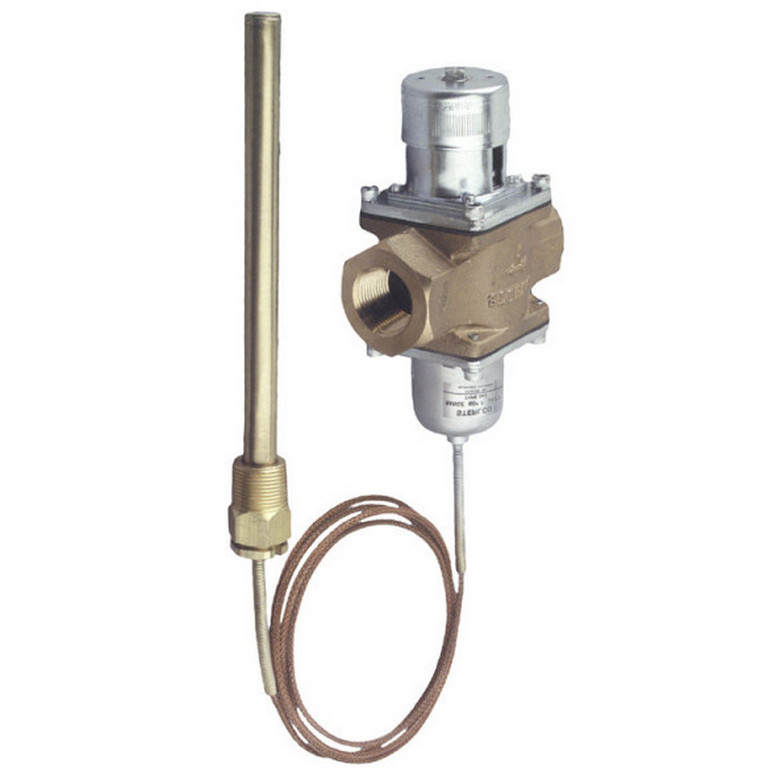

The Sterlco 56T .375 inch 125F-200F Adjustable Temperature Control Valve has everything needed for reliable temperature control. Trust this most reliable Sterlco 56T Temperature Control Valve 125F-200F evenly regulates cooling water temperature between 125F -200F. Also regulates other fluids in the most rugged applications. It’s ideal for water cooled heat exchangers, hydraulic power packaged equipment, hydraulic presses or wherever reliable performance is required. The 56-T Valve is available in six different temperature ranges.
Sterlco 56T .375 inch 125F-200F Specifications:
- Liquid Connections Size: 3/8″ NPT
- Fluid Pressure Range: Up to 125 PSI for 3/8″ through 1 1/4″ NPT sizes
- Standard Temperature Range: Adjustable (opening point adjustment may be anywhere within the standard ranges shown)
- Body: Brass Alloy Casting
- Valve Parts: Brass Alloy
- Standard Capillary Length: 6′ (for other capillary lengths, consult factory)
- Valve Mounting: Any position
- Standard Bulbs For 3/8″, 1/2″ NPT Size Units: 5/8″ x 6″ with 3/4″ union connection
- Special Bulbs: 3/8″ through 1 1/4″ sizes: 9/16″ x 3 1/4″, with 1/2″ union connection; 9/16″ x 6 3/4″ with 1/2″ union connection. Available on special order. Please consult factory for details.
- Seat Disc: Replaceable Buna-N
- Seat Bead: Replaceable stainless steel (3/8” through 1 1/4”)
- Temperature Adjustment: 3/8” – 1 1/4” valves: For lower temperature, turn adjusting screw counterclockwise. For higher temperature, turn clockwise.
- Model – Sterlco 56T .375 inch 125F-200F
