Thermal Transfer AHP-950 Compressed Air Coolers

Description

The Thermal Transfer AHP-950 Compressed Air Coolers are specifically designed for cooling compressed air. The rugged, heavy duty design features high performance bar & plate aluminum construction that is optimized for high air flow, low pressure drop, and maximum heat transfer. To support system design, the AHP/AHPH Series is also backed by downloadable CAD models, technical documentation, and application engineering support to simplify OEM integration.

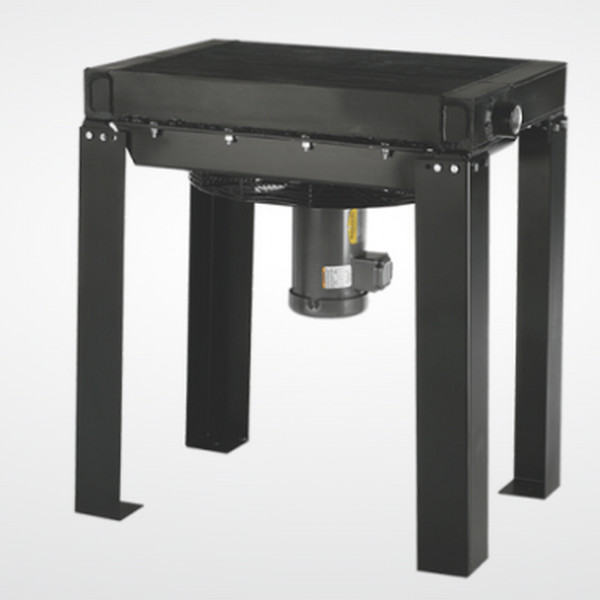

AHP Series features durable black powder coating finish and detachable legs for floor or suspension mounting.  Air flow is vertical so hot air can be blown away from any operators. This compact series includes 9 models with flow capacity from 125 – 4800 SCFM (3.5 – 135.9 SCMM) to be used on compressors from 60 – 700 HP (45 – 520 Kw).

AHPH Series features durable black powder coating finish and are designed for horizontal air flows.  Fixed mounting feet. This compact series includes 6 models with flow capacity from 30 –2800 SCFM (1 – 80 SCMM) to be used on compressors from 60 – 400 HP (45 – 520 Kw).

Features

• Full line of sizes and features
• Brazed bar and plate aluminum core
• Energy efficient
• High performance
• High flows 50-3500 CFM
• Vertical (AHP) or horizontal (AHPH) air flow
• High technology compact design
• Rugged heavy-duty construction
• Excellent for heat recovery
• Detachable legs on AHP (shipped unattached). Fixed mounting Feet on some AHPH models
• CRN Available

Specifications

• Model: AHP Vertical air flow
• Model Size: 950
• Motor Options:
  • 0 – NONE
  • 2 – Single Phase (115/230V)
  • 3 – Three Phase (230/460V)
  • 5 – Air Motor
  • 6 – 575 Volt
  • C- Core Only

Ratings

• Maximum Operating Pressure 250 PSI
• Maximum Operating Temperature 350°F
• *CRN Rating 235 PSI at 250°F (121°C)

Materials

• Cabinet – Steel with baked enamel finish
• Core – Brazed aluminum bar and plate
• Fan – Aluminum hub, polypropylene blades
• Shroud – Painted steel
• Motor – TEFC
• Fan Guard – Steel with baked enamel finish

Customer Focused & Driven

• All catalog product is available with short lead-times, ensuring fast delivery and dependable supply
• Expert application engineers are available to select and size the right product for your application
• Custom designs are available
• Replacement parts and maintenance support keep your systems running with minimal downtime
• Procurement advantage: designed to meet global standards while reducing overall total cost of ownership
