Description

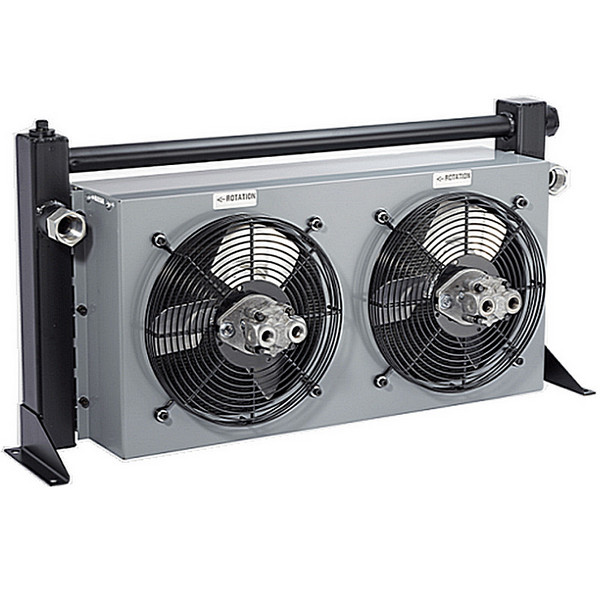

The Thermal Transfer AOC-50 Mobile Heat Exchanger features DC or hydraulic fan drives and is ideal for low flow applications. This cooler is a cost effective solution for power unit applications and is available in single or dual fan designs. The dual rated (50/60 Hz) electric motor allows for application flexibility. Removable air filters prevent air-side core blockage (clogging of fins with debris) and aggressive turbulators allow for optimal heat rejection at lower flow rates.
Features
- Designed for remote mounting away from engine cooling
- Does not block main engine radiator
- Heavy duty construction
- High performance air side fin design
- DC or Long life hydraulic motor fan drives
- Core protected by serviceable stainless mesh screen
- 3/4″ tube size
- SAE connections standard
Product Options
- Built-in serviceable internal pressure bypass
- NPT, BSPP or SAE connections
Specifications
- Model: AOC Mobile
- Model Size: 50
- Connection Type: NPT/SAE/BSPP
- Motor Options: No Motor/DC Motor (12VDC or 24VDC)/Hydraulic Motor
- Bypass (Optional): No Bypass/30PSI/60PSI
Ratings
- Maximum Operating Pressure 300 PSI
- Maximum Operating Temperature 350°F
- Heat Removal up to 160 HP (120 kW)
- Oil Flows to 150 GPM (330 lpm)
Materials
- Tubes – Copper
- Fins – Aluminum
- Turbulators – Aluminum
- Fan Blade – DC Motor – High impact plastic
- Fan Blade – Hydraulic motor – Aluminum with steel hub
- Fan Guard – Hydraulic motor – Steel with black powder coat
- Manifolds – Steel
- Connections – Steel
- Cabinet – Steel with powder coat
- Filter – Stainless frame with washable media
- Nameplate – Aluminum
- 3/4” external, all steel valve.
- AOC-37 through AOC-70, 1½” external, all steel valve
Customer Focused & Driven
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- XSelector®* is a great tool for optimizing the sizing of TTP coolers. Check out the Apple and Android app stores to download the XSelector® App
- Our distributor One Status portal allows for on demand quoting of coolers and looking up order status
- Custom designs are available
Documents PDF’s
- AOC Mobile Series Brochure
- AOC Mobile Technical Information
- AOC Mobile Accessories
- AOC Series Service Parts
