Description

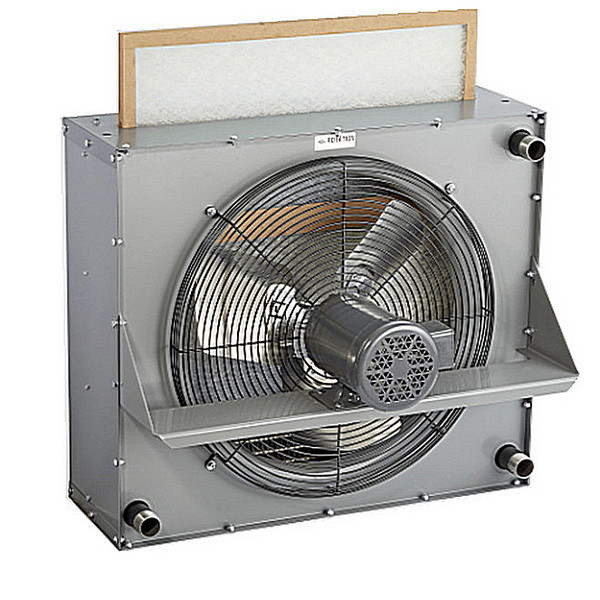

The Thermal Transfer AOF-40 Industrial Air Cooled Copper Tube/Aluminum Fins has the same features as the AO Series, just with an addition a replaceable air filter to protect the heat exchanger in adverse environments.
The AC fan drive and is ideal for medium flow rates and moderate heat removal. This series is available with an optional internal pressure bypass. Cabinet louvers allow the user to regulate the direction of heated exhaust air. This versatile design allows for a one or two pass configuration.
Features
- Available fiberglass disposable or aluminum washable filters
- Interchange for Young OCH
- Adjustable louvers (manual)
- Medium flow rates
- Moderate heat removal
- One or two pass option
Product Options
- Internal pressure bypass
- Foot brackets
- SAE & metric connections
- Corrosive resistant marine coating
Specifications
- Model: AOF
- Model Size: 40
- Connection Type: NPT/SAE/BSPP
- Motor Options: No Motor/1PH/1PH EXP/3PH/3PH EXP/575V
Ratings
- Maximum Operating Pressure 300 PSI
- Maximum Operating Temperature 400°F
- Heat Rejection from 1-30 HP (1.3-22 KW)
- Oil Flow from 2-100 GPM (4-220 LPM)
Materials
- Tubes – Copper
- Fins – Aluminum
- Turbulators – Steel
- Fan Blade – Aluminum with steel hub
- Fan Guard – Zinc plated steel
- Cabinet – Steel with powder coat finish
- Manifolds – Steel
- Connections – Steel
Customer Focused & Driven
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- XSelector®* is a great tool for optimizing the sizing of TTP coolers. Check out the Apple and Android app stores to download the XSelector® App
- Our distributor One Status portal allows for on demand quoting of coolers and looking up order status
- Custom designs are available
