Description

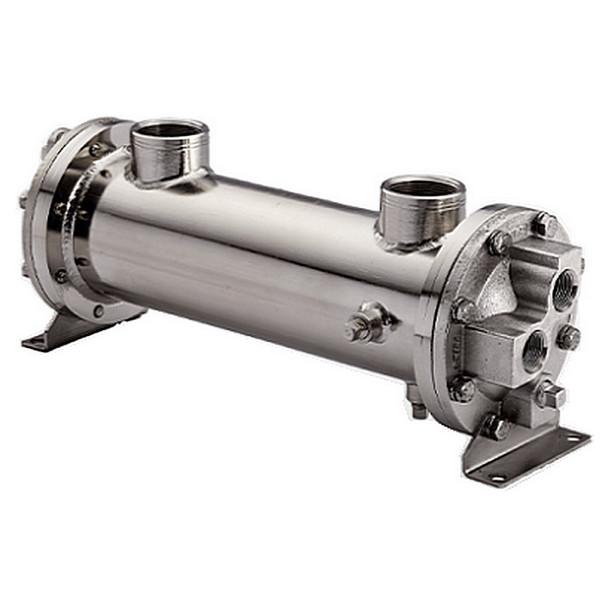

The Thermal Transfer SSC-1724-6 Bare Tube Bundle Shell & Tube features all stainless-steel construction for applications where poor cooling water condition exists. The proven fixed tube sheet design shell and tube heat exchanger offers the cost effectiveness that comes with having a highly standard design, while easily providing for various options to meet specific application requirements.
Features
- Type 316 stainless steel construction
- Custom designs available
- Competitively priced
- NPT, SAE, SAE flange, or BSPP shell side connections available
- End bonnets removable for servicing
- Mounting feet included (may be rotated in 90° increments)
- Special ASME/TEMAC/CRN ratings available
Specifications
- Model: SSC
- Model Size: 1724
- Baffle Spacing Options (Inches): 1.3, 1.7, 2, 2.5, 3, 3.5, 4, 5, 6, 8.4
- Tube Diameter: 3/8
- # of Passes Options: 1 Pass, 2 Pass, 4 Pass
Ratings
- Maximum Operating Pressure – Shell Side 300 PSI*
- Maximum Operating Pressure – Tube Side 150 PSI
- Maximum Operating Temperature 300°F
Materials
- Tubes – 316 stainless steel
- Tubesheets – 316L stainless steel
- Shell – 316L stainless steel
- Shell Connections – 316L stainless steel
- Baff?les – 316 stainless steel
- End Bonnets – 316 stainless steel
- Mounting Brackets – Mild steel
- Gaskets – Nitrile rubber/cellulose fiber
- Nameplate – Aluminum foil
Customer Focused & Driven
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- XSelector®* is a great tool for optimizing the sizing of TTP coolers. Check out the Apple and Android app stores to download the XSelector® App
- Our distributor One Status portal allows for on demand quoting of coolers and looking up order status
- Custom designs are available
