Description

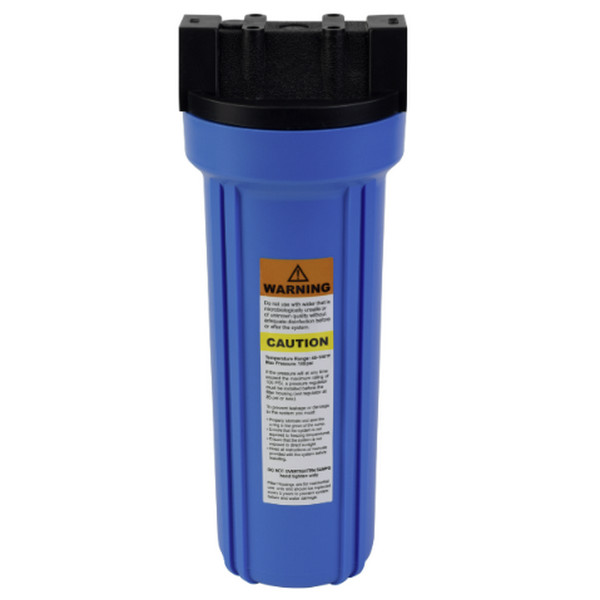

This Watts FH4200BL34 Flowmatic 10″ Plastic Filter Housing, 3/4″ NPT Ports is a heavy-duty housing made using high quality FDA grade polypropylene. It features thick side walls with heavy duty reinforcing ribs for greater strength. It provides superior resistance to many aggressive chemicals. A buttress thread design ensures superior sealing and security, while compressible EPDM O-rings in the cap, sump and top seat provide an added measure of sealing. The housing is for (2-1/2 IN diameter x 10 IN Length) filter cartridge.
Features
- Resists most acids, alcohol, ammonia, oils, and plating solutions
- Temperature range 40 degrees F (4 degrees C) to 100 degrees F (37.8 degrees C)
- Maximum pressure 100 psi
- Non-pressure relief valve style
Specifications
- Model – FH4200BL34
- Size – 10″
- PR – NO
- Sump – Blue
- CAP – Black
- Pipe Size – 3/4″ NPT
- Weight – 2 lbs. (12 in carton 24 lbs.)
- Carton Size – (19x14x13)
- Material, Sumps & Caps – FDA Grade Polypropylene
- Material, O-Rings – EPDM is standard; Viton is available as a spare part
- Maximum Temperature (Standard) – 100F (37.8C)
- Maximum Temperature (Full Flow) – 100F (37.8C)
- Minimum Temperature – 40F (4C)
- Maximum Pressure (Standard) – 100PSI (6.9 bar)
- Maximum Pressure (Full Flow) – 90PSI (6.21 bar)
- Maximum Pressure (Valve in Head) – 100PSI (6.9 bar)
- Burst Test – Tested to 500PSI. (150,000 cycles from 1 to 125PSI)
PDF’s
- Watts Flowmatic Plastic Filter Housings P.110
- Watts Flowmatic Plastic Filter Housings P.111
- WATTS Flowmatic Plastic Filter Housings P.208-2021
