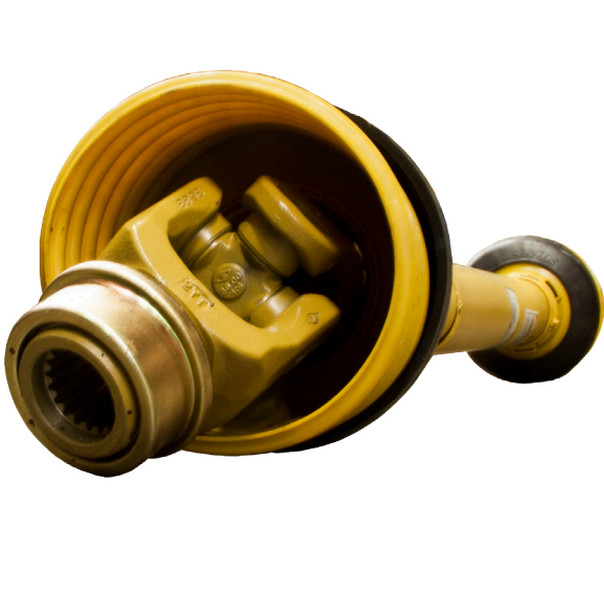

Winco 54961-000 Generator 135HP PTO Shaft

Description

The Winco 54961-000 Generator 135HP PTO Shaft is rated for 135 HP and will last as long as your Winco generator.

(Compatible with the following generators:)

• 30PTOT4 1000 RPM
• 35PTOT4 1000 RPM
• 50PTOT4 1000 RPM
• 55PTOT4 1000 RPM
• 75PTOC-4 1000 RPM
• 75PTOC-17 1000 RPM

Winco 54961-000 Specifications:

• Power Rating: 30-75kW
• Operating Speed: 1000 RPM
• Gen End Connection: 1-3/8″ – 6 Spline
• Tractor End Connection: 1-3/8″ – 21 Spline
• Shaft Power Rating: 135 HP
• Total Shaft Travel: 15.95″
• Shipping Dimensions: 49.5″ x 8.25″ x 9″
• Ship Weight: 58 lbs.

Documents PDF’s

• SPECIFICATIONS 54961.pdf
