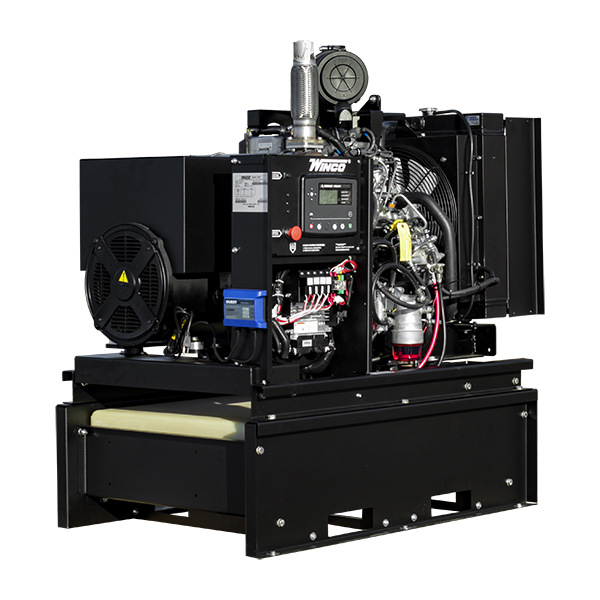

Winco DE23 Diesel Prime Power Generator

Description

The Winco DE23 Diesel Prime Power Generator offers voltage outputs in 120/240V single-phase as well as 120/208V, 120/240V, and 277/480V in three-phase. Ranging from 31 to 82 amps of current and 19.8 to 20.7 kilowatts of power, the this generator is extremely versatile and can suit many needs. This Winco prime power generator has new features such as a standard DSE7310 controller, the new Isuzu 4LE2T series engine, service access on one side, Electronic Common Rail, and radiator ducting, to name a few.

Winco DE23 Model Basics:

• 120/240V 1-PH | 19.8 kW | 82 Amps
• 120/208V 3-PH | 20.7 kW | 71 Amps
• 120/240V 3-PH | 20.7 kW | 62 Amps
• 277/480V 3-PH | 20.7 kW | 31 Amps

Winco DE23 Features:

• Isuzu 4LE2T 2.2 Liter Engine – Dependable 4 cylinder, 1800 RPM engine. EPA compliant, tier 4 final.
• Deep Sea 7310 MKII Controller – This digital controller is powerful and dynamic with a user-friendly interface.
• Stamford Generator End – Alternators built to produce clean power for industrial applications.
• Battery Charger – Factory installed 3 stage, 2 Amp battery charger.
• Block Heater – In-line Kim Hotstart, 120V, block heater with thermostat.
• Powder Coat Paint – Provides a durable, long lasting finish.
• UL2200 Listed – A safety standard for the design, construction, and performance of stationary generators.
• 100% Load Tested – Every WINCO generator undergoes a load test before it leaves the factory.

DE23 Prime Power Generator Additional Information:

DE23 Prime Power Generator Information:

• DE23 Operator’s Manual
• Specification Sheet
• Outline Drawing

Engine Information

• Engine Operator’s Manual

Generator Information

• Parts List
• Generator Operator’s Manual
