Description
The Winco PSS90 Gaseous Liquid Cooled Generator 90kW offers a durable GM 5.7L 8 cylinder industrial engine with 1800 rpm standby generator, liquid cooled, outfitted with jacket heater and battery charger for cold weather operation. Field select-able natural gas or liquid propane fuel, UL2200 & CSA listed, a solid reliable performer made in the USA.

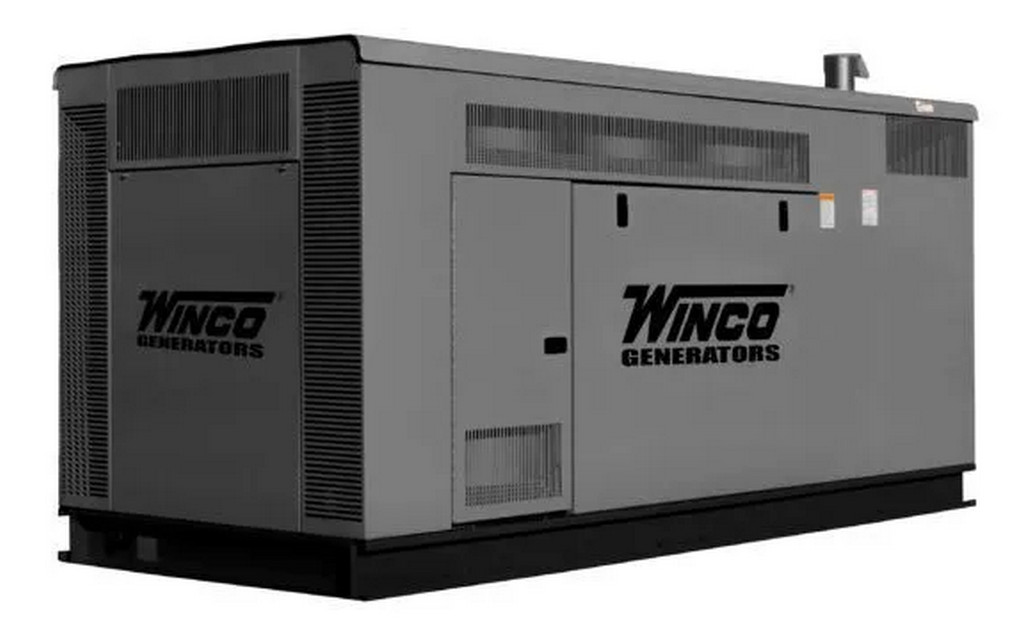

Price is without the weather housing shown in photo, protective weather housing can be added at time of order.
Winco PSS90 Features:
- PSS90 Generator With Housing – Our PSS90 Gaseous Liquid Cooled standby generator is a perfect for many different power needs. This unit can run on LP or natural gas. It is not unreasonable to expect 20-30+ years of service from a well-maintained unit like this.
- GM 5.7L Turbo Engine – The 8-cylinder, overhead valve engine meets EPA/CARB emission regulations. The 5.7L is the premier industrial workhorse, providing the power needed to get the job done without sacrificing fuel efficiency or durability.
-
Stamford Generator End – Industrial grade generator ends predominantly used for standby applications. These alternators are very versatile for more demanding and challenging applications.
-
Premium Circuit Breakers – Dependable circuit breaker protection.
-
Battery Charger – Factory installed 3 stage, 2 Amp battery charger.
-
Block Heater – In-line Hot-start, 120V, block heater with thermostat.
-
DSE7310 – The DSE7310 MKII is a powerful, new generation auto start genset control module with a highly sophisticated level of new features and functions, presented in the usual DSE user-friendly format.
-
Galvanealed Steel Weather Enclosure – Our weather enclosures provide sound reduction while our powder coat paint provides a durable, long lasting finish.
-
100% Load Tested – We load test every generator before it leaves our factory.
- Switches? ASCO Automatic Transfer Switches we offer.
Winco PSS90 Specifications:
Electric –
Volts / POWER FACTOR
- 120/240 1-PH / (1.0 PF)
- 120/208 3-PH / (0.8 PF)
- 120/240 3-PH / (0.8 PF)
- 277/480 3-PH / (0.8 PF)
- 346/600 3-PH / (0.8 PF)
Engine –
- Manufacturer: GM
- Model: 5.7L INDUSTRIAL
- Starter: 12V Electric
- Speed: 1800 RPM
- Cylinders: 8
- HP Rating: (NG) 153
- (LP) 90
- Frequency: 60 HZ
Genset –
- MOTOR STARTING (CODE G): 40 HP
- Total Harmonic Distortion: < 5%
- Floating Neutral: YES
- Assembled In: USA
- EPA Approved: YES
- TÜV Certification: UL2200
- CSA
- Unit Warranty(2): 2 YR/2000 HRS
