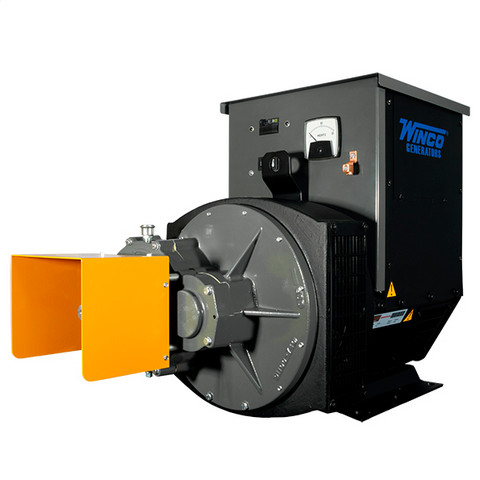

Winco W145FPTOS-17 PTO 1000RPM Driven Generator 64868-014 3 Phase
The Winco W145FPTOS-17 PTO 1000RPM Driven Generator 64868-014 has been providing a reliable emergency power source for agricultural operations for decades. The incredibly durable PTO generator has saved time, money and material by supplying critical power when needed.
Each WINCO PTO generator is designed using the highest quality components and the best workmanship available to ensure no critical corners are cut. Attention is paid to the most obvious exterior features like the steel PTO guard as to the internal components that most operators will never see such as the high temp wire high temp wire. WINCO PTO’s have been proven in the field over time which is why they are the only model you should trust to protect your business and family.
Winco W145FPTOS-17 Features:
- Low Harmonic Distortion – Provides clean power for both farm and home.
- Cast Iron Gearcase with Helical Gears – A 1000 RPM operating speed makes for effective operation.
- Frequency Meter – A large 3 1/2? frequency meter ensures the proper output.
- Premium Circuit Breakers – Providing clear and instant identification of a tripped circuit.
- Protective PTO Shield – Safety is always a priority.
- 100% Load Tested – You won’t find statistical sampling here. We load test every generator before it leaves our facility.
Winco W145FPTOS-17 Specifications:
| Power Rating-Cont (watts) | 145000 | |
| Voltage | 120/240 3-PH | |
| Running Amps | 435 | |
| Voltage Regulation | AVR | |
| Required HP at Tractor PTO | 290 | |
| 120V Receptacles | (1) NEMA 5-20 20A Duplex | |
| 240V Receptacles | (1) 6-50 50A | |
| PTO Input Speed | 1000 RPM | |
| Input HP | 290 hp | |
| Weight | 1494 lbs | |
| Warranty | 3 yrs | |
