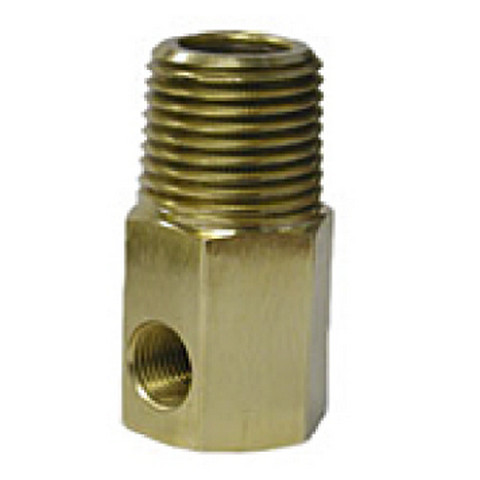

Wyckomar Thermo-Sensitive UV System Purge Valve Kit

Description

Wyckomar Thermo-Sensitive UV System Purge Valve Kit. Rostra’s thermal relief valves provide accurate release of any fluid by sensing temperature. Simply order the correct thermal relief temperature between 30F and 300F and it will be set and sent out ready to use. These valves are 100% maintenance free, and require no power source. This Thermo-Sensitive UV System Purge Valve will prevent over-heating in any UV system. As the water in the UV chamber reaches the preset value, the valve opens and purges the hot water. Supplied with barb fitting and tube.

Features

• Wyckomar Part# 10-PV-BF-T
• 100% maintenance free Temperature range 30F – 300°F
• Pre-set to your temperature
• Accurate within 1 degree Various materials
• Custom adaptation available

Specifications

• 1/2″ NPT  Valve with outlet barb
• Temperature: 105F standard range (Optional temperatures available consult Toboa Energy for information)
• Temperature Range: 30-300F
• Rated Flow Rate: 5 gpm
• Operating Pressure 10-200 psi
• Materials: Brass
