Description

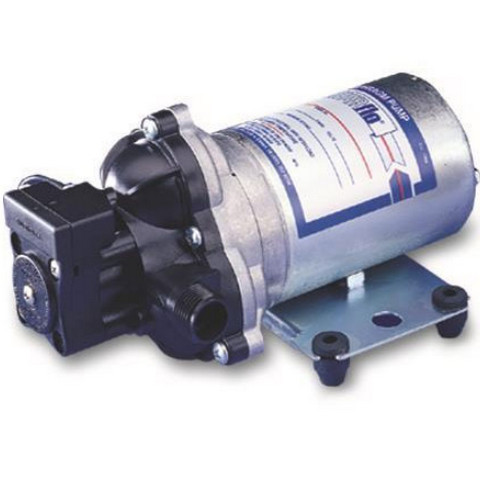

The Shurflo Pump 2088-313-544 provides 12vDC, 45 PSI Switch, 4 GPM flow rate with a sealed motor, 45 psi demand switch, Polypropylene housing, Viton® valves, Santoprene® diaphragm, and 1/2” MSPT ports. Suitable for cabin, irrigation, or small home systems. The Shurflo 2088 Series diaphragm pumps ensure consistent performance in applications requiring high flow and moderate pressure. These pumps are utilized in various spraying and transfer tasks demanding flows of up to 4.0 GPM [14.4 l/min]. They are adaptable to multiple mounting positions and are engineered for straightforward maintenance.
Applications – Transfer / Spray
Features
- Self-Priming up to 12 Vertical Feet [3.7M]
- Chemically Resistant Materials
- Automatic Demand
- Built-In Check Valve (May Vary by Model) to Prevent Back Flow of Fluid
- Supported for agriculture
Specifications
- PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
- CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
- CAM: 3.0 Degree
- MOTOR: Permanent Magnet, P/N 11-226-06, Thermally Protected
- VOLTAGE: 12 VDC Nominal
- PRESSURE SWITCH: Splash-Proof
- Factory Set @ 45 PSI Shut-Off, Turn On 25 PSI 5 PSI
- LIQUID TEMPERATURE: 130 Degrees Fahrenheit (54 Degrees Centigrade) Max.
- PRIME: Self-Priming Up To 8 Ft. Vertical,
- Max. Inlet Pressure 30 PSI
- PORTS: 1/2″-14 Male Parallel Thread
- MODEL NUMBER: Shurflo Pump 2088-313-544
Material of Construction
- PLASTICS- Polypropylene
- VALVES- Viton
- DIAPHRAGM- Santoprene
- FASTENERS- Stainless Steel
- NET WEIGHT: 6.0 Lbs (2.7 Kg)
- DUTY CYCLE: Continuous (See Temperature Rise Chart)
