Description

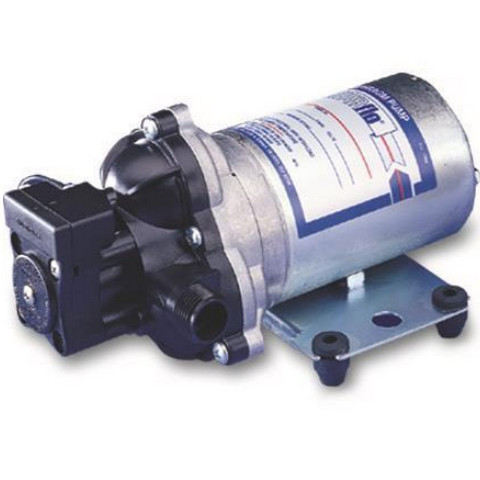

The Shurflo Pump 2088-474-144 is equipped with 24vDC, a 45PSI Demand Switch, 3.5 GPM open flow, maximum 40 psi, a Polypropylene housing, Santoprene valves, a Santoprene diaphragm, and 1/2”-14 NSPT ports. This pump is well-suited for applications such as cabins, watering projects, or small home systems. Within the Shurflo 2088 Series diaphragm pumps, users can expect reliable performance for high flow and moderate pressure tasks. Notable features include self-priming capabilities up to 12 Vertical Feet [3.7M], automatic demand functionality, chemically resistant materials, and specific support for agricultural use. These pumps are commonly employed in various spraying and transfer scenarios that necessitate flows of up to 4.0 GPM [14.4 l/min]. Furthermore, they offer flexibility in mounting positions and are designed for simplified maintenance.
Features
- Self-Priming up to 12 Vertical Feet [3.7M]
- Chemically Resistant Materials
- Automatic Demand
- Built-In Check Valve (May Vary by Model) to Prevent Back Flow of Fluid
- Supported for agriculture
Specifications
- Voltage: 24v DC
- Control Pressure: 45 PSI
- Control Type: Switch
- Open Flow GPM: 3.5 GPM
- Amps: 3.5
- Ports: 1/2″-14 NPSM
- Housing Material: Polypropylene
- Valve Material: Santoprene
- Diaphragm Material: Santoprene
- Cam: 3
- Diaphragm Type: Solid
- Motor Finish: Zinc
- Motor Wiring: 16 AWG wires w/SW
- Wire Length: 12.75
- Model: Shurflo Pump 2088-474-144
Material of Construction
- PLASTICS-Polypropylene
- VALVES-Santoprene
- DIAPHRAGM-Santoprene
- FASTENERS-Zinc
- NET WEIGHT: 4.8 Lbs. (2.18 Kg)
- DUTY CYCLE: Intermittent (See Temperature Rise Chart)
- TYPICAL APPLICATIONS: Agricultural Spraying
