Description

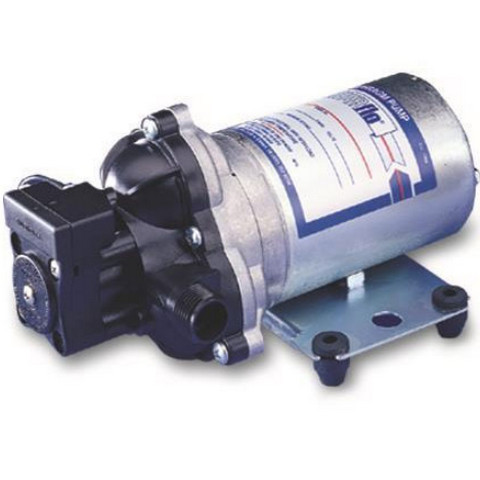

The Shurflo Pump 2088-483-124 is equipped with specifications including 36vDC, 45PSI Demand Switch, 3.3 GPM open flow, 2.71 amps, max 45 psi, Polypropylene housing, Santoprene valves, Santoprene diaphragm, and 1/2”-14 NSPT ports. This model is well-suited for cabin, watering projects, or small home systems. Within the Shurflo 2088 Series diaphragm pumps, users can expect reliable performance in applications requiring high flow and moderate pressure. Noteworthy features include Self-Priming capabilities up to 12 Vertical Feet [3.7M], Automatic demand, chemically resistant materials, and specific support for Agriculture. These pumps are commonly utilized in various spraying and transfer tasks necessitating flows of up to 4.0 GPM [14.4 l/min]. They offer versatility in mounting positions and are designed for straightforward maintenance procedures.
Features
- Self-Priming up to 12 Vertical Feet [3.7M]
- Chemically Resistant Materials
- Automatic Demand
- Built-In Check Valve (May Vary by Model) to Prevent Back Flow of Fluid
- Supported for agriculture
Specifications
- Voltage: 36v DC
- Control Pressure: 45 PSI
- Control Type: Switch
- Open Flow GPM: 3.3 GPM
- Amps: 1.8
- Ports: 1/2″-14 NPSM
- Housing Material: Polypropylene
- Valve Material: Santoprene
- Diaphragm Material: Santoprene
- Cam: 3
- Diaphragm Type: Solid
- Motor Finish: Painted
- Motor Wiring: 16 AWG wires w/SW
- Wire Length: 12.5
- Model: Shurflo Pump 2088-483-124
Material of Construction
- PLASTICS-Polypropylene
- VALVES-Santoprene
- DIAPHRAGM-Santoprene
- FASTENERS-Painted
- NET WEIGHT: 4.8 Lbs. (2.18 Kg)
- DUTY CYCLE: Intermittent (See Temperature Rise Chart)
- TYPICAL APPLICATIONS: Agricultural Spraying
