Description

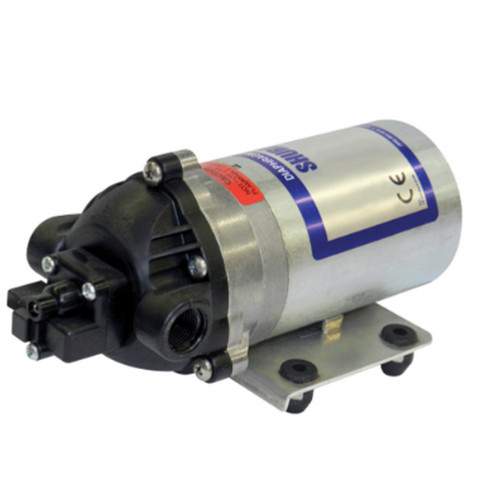

The Shurflo Pump 8006-543-250 is a 12vDC bypass pump with a reversed pump head, Viton valves, Santoprene diaphragm, and a 45 PSI internal bypass featuring an on/off switch, fuse holder, pre-wired with a 2-wire molded connector, and motor shroud. It does not include a Demand Switch and has 3/8 NPT-Female ports with a Poly housing. This pump is part of Shurflo’s 8000 Series diaphragm pumps, renowned for their industrial and agricultural applications. Common uses include transmission and cooling system flush and fill, along with filtration in aqueous parts washing equipment. These pumps, equipped with spherically shaped valves and automatic demand switches, offer consistent, reliable operation and priming capabilities of up to 1.8 GPM [6.8 l/min]. They are versatile in terms of mounting positions and materials, resistant to various chemicals. Maintenance is straightforward, and they are compatible with voltages ranging from 12 VDC to 230 VAC.
Features
- Pressures up to 150 PSI [10.3 BAR]
- Self-Priming up to 8 Vertical Feet [2.4M]
- Chemically Resistant Materials
- Designed for Spraying and Fluid Transfer
- Can Run Dry without Damage
- Built-In Check Valve
- Supported for agriculture
Specifications
- Voltage: 12v DC
- Control Pressure: 30 PSI
- Control Type: Bypass
- Open Flow GPM: 1.8 GPM
- Amps: 7
- Ports: 3/8″ NPT
- Housing Material: Polypropylene
- Valve Material: Viton
- Diaphragm Material: Santoprene
- Cam: 3
- Diaphragm Type: Solid
- Motor Finish: Zinc
- Motor Wiring: 16 AWG wires w/SW
- Wire Length: 12.5
- Model: Shurflo Pump 8006-543-250
Applications
- CHEMICAL TRANSFER & METERING
- COLD THERAPY CIRCULATION
- CONSTRUCTION AND EQUIPMENT
- CHEMICAL AND FLUID DISPENSING
- WATER TREATMENT AND DELIVERY
- HOT OIL EQUIPMENT
